Definition:
Business Process Modeling Notation (BPMN) is a standardized visual language for mapping, documenting, analyzing, and improving business processes. It helps organizations increase workflow efficiency, improve process visibility, strengthen collaboration, and support automation efforts.
Quick Fact: Business Process Modeling Notation (BPMN) provides a shared visual language for business processes, making it easier to identify bottlenecks, improve collaboration, and support automation initiatives.
Key takeaways
- BPMN provides a standardized visual language for documenting and understanding business processes.
- Clear process diagrams help improve communication between business and technical teams.
- BPMN makes it easier to identify inefficiencies, bottlenecks, and opportunities for improvement.
- Organizations can use BPMN to support process automation, optimization, and continuous improvement efforts.
- Different BPMN diagram types help teams visualize workflows, interactions, and process execution.
What is business process modeling notation?
Imagine having a clear, universal language that helps everyone in your organization understand how work gets done. That’s exactly what Business Process Modeling Notation (BPMN) provides. BPMN is a standardized graphical language that uses symbols to represent the components of a business process. The result is a visual guide that helps business analysts, developers, stakeholders, and teams stay aligned and work from a shared understanding of a process.
Understanding business process modeling notation isn’t just for technical teams. It’s a valuable tool for organizations looking to improve operational efficiency, increase visibility, and create greater consistency across their processes.
Overview of business process modeling notation
So, what is business process modeling notation? At its core, BPMN is a graphical standard designed to map and document business processes in a clear, detailed way. Using a consistent set of symbols, BPMN creates a universal language that improves communication across an organization. Whether you’re documenting workflows, analyzing existing processes, or identifying opportunities for improvement, BPMN provides a clear visual framework for understanding how work flows from start to finish.
BPMN first emerged in the early 2000s, with its initial version released in 2004 by the Business Process Management Initiative. After being adopted by the Object Management Group in 2006, BPMN quickly became a widely accepted standard in business process management. While the notation has evolved over time, its purpose remains the same: helping organizations visualize, understand, and improve their processes.
Key components of BPMN
Understanding what BPMN is used for starts with its core components. BPMN uses symbols such as circles, rectangles, and diamonds to represent events, activities, and gateways. These symbols help stakeholders quickly understand the structure and flow of a process without needing extensive technical knowledge.

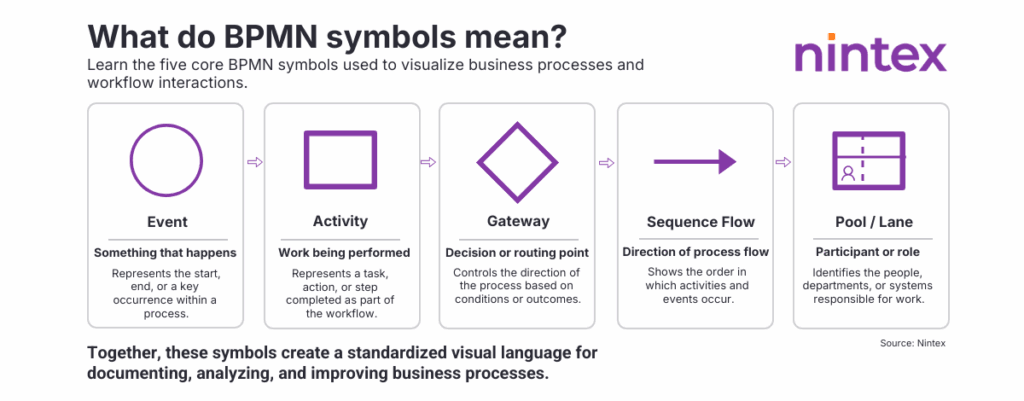

BPMN uses a standardized set of symbols to represent events, activities, decisions, participants, and process flow.
Different BPMN diagram types support different business needs. Collaboration diagrams focus on interactions between participants, while process diagrams illustrate how tasks move through a workflow. These visual representations make it easier for everyone involved to understand responsibilities, dependencies, and process flow.
At the center of BPMN are events, activities, and gateways, which serve as the building blocks of process models. Events indicate when a process starts, reaches an intermediate stage, or ends. Activities represent the work being performed, while gateways represent decisions that influence the direction of the process. BPMN helps organizations model, automate, and optimize processes more effectively.

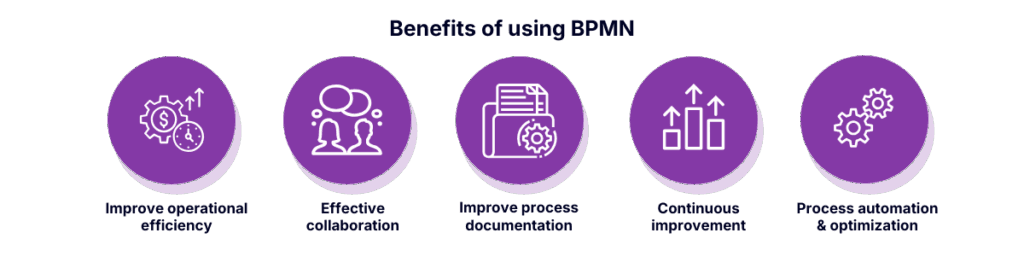

Benefits of using BPMN
Wondering what business process model and notation is used for in practice? BPMN helps organizations improve operational efficiency by creating a clear, shared view of how work gets done. Because it provides a standardized visual representation of processes, BPMN makes it easier for teams with different backgrounds and responsibilities to collaborate effectively.
BPMN also improves process documentation. Its intuitive diagrams make workflows easier to understand, reducing confusion and supporting employee onboarding and training. Better visibility into processes can help organizations uncover inefficiencies and identify opportunities for continuous improvement.
In addition, BPMN supports process automation and optimization efforts. BPMN can help organizations reduce manual work, streamline operations, and improve overall efficiency.
Types of BPMN models
Understanding what BPMN is used for also means understanding the different types of diagrams available. BPMN offers several diagram formats designed to support different business goals and levels of process analysis.
Process diagrams focus on the flow of activities within a process, showing task sequences and interactions. These diagrams are especially useful when stakeholders need a clear understanding of how work moves through a process.
Collaboration diagrams highlight interactions between participants and help teams visualize communication flows across departments, teams, or organizations. They are particularly valuable for cross-functional initiatives where coordination is critical.
Choreography diagrams focus on message exchanges between participants rather than internal activities. These diagrams can be useful when modeling interactions between multiple organizations or external partners.
Orchestration diagrams provide a detailed view of a participant’s internal process execution. By showing how tasks are coordinated and managed, these diagrams help organizations identify inefficiencies and optimize internal workflows.
Comparison with other process modeling notations
When exploring business process modeling notation, it’s helpful to compare BPMN with other modeling approaches such as Unified Modeling Language (UML) and traditional flowcharts.
While UML is primarily used for software and system design, BPMN focuses specifically on business processes. It provides a more detailed representation of activities, decision points, and participant roles, making it particularly useful for business analysts and process improvement initiatives.
Compared to traditional flowcharts, BPMN offers a more structured and scalable approach to process visualization. As processes become more complex, flowcharts can become difficult to follow, while BPMN’s standardized symbols and modeling rules help maintain clarity.
The right notation depends on your goals. BPMN is often the best choice for detailed business process modeling, UML is better suited for system architecture and software design, and flowcharts may be appropriate for simpler workflows. Choosing the right approach helps ensure process documentation is both effective and easy to understand.
Getting started with BPMN
Ready to start using business process modeling notation? Start by identifying the process you want to model. Define its scope, inputs, outputs, stakeholders, and key objectives. From there, use standard BPMN symbols to map activities, decisions, events, and interactions within the process.
As you build your initial diagram, collaborate with stakeholders to gather feedback and validate accuracy. Keeping diagrams focused and easy to read can improve understanding and adoption. Clear labels, consistent formatting, and thoughtful organization all contribute to more effective process models.
Because business processes evolve over time, BPMN diagrams should be reviewed and updated regularly to ensure they continue to reflect current operations and business needs.
Problems and solutions
| Problems | Solutions |
|---|---|
| Lack of standardized process documentation | Adopt BPMN for standardized process representation |
| Poor communication between stakeholders | Adopt BPMN for standardized process representation |
| Inefficient workflow processes | Optimize workflows using BPMN diagrams |
| Difficulty identifying process bottlenecks | Identify and address bottlenecks through BPMN analysis |
FAQ
What is BPMN used for?
BPMN is used to visually represent, analyze, and improve business processes, helping organizations communicate more effectively and manage workflows more efficiently.
How does BPMN improve business processes?
BPMN improves business processes by providing a clear, standardized framework that helps teams identify inefficiencies, improve visibility, and streamline workflows.
Is BPMN suitable for all industries?
Yes. BPMN is widely used across industries because it provides a flexible and standardized approach to process modeling and management.
Can BPMN be integrated with process automation tools?
Yes. BPMN can be integrated with process automation platforms, including Nintex solutions, to help organizations automate, optimize, and manage business processes more effectively.
